DURBAL BRTF16-31 杆端关节轴承--DURBAL BRTF16-31参数报价

目录 DURBAL BRTF16-31 杆端关节轴承

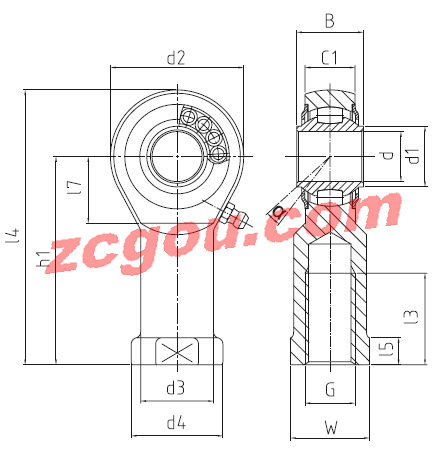

DURBAL BRTF 16 - 31 图纸

type	right hand thread	left hand thread	d (mm)	G	B (mm)	C1 (mm)	h1 (mm)	d1 (mm)	d2 (mm)	d3 (mm)	d4 (mm)	l3 (mm)	l4 (mm)	l5 (mm)	l7 (mm)	W (mm)	tilt angle alpha (°)	weight (kg)	rotational speed limit n max. (min-1)	basic load rating dyn C (kN)	basic load rating stat Co (kN)	radial clearance (m)	d (mm)
BRTF 16 - 31	-501	-502	16	M 16 X 1,5	21	15	64	19	42	22	27	28	85	8	22	22	7	0.222	650	17.3	11.8	10 - 30	16

产品代号: BRTF16-31
类型：杆端关节轴承
上架日期：2021-06-09
应用行业:环保机械,装卸机械,重型矿山机械,输送机,工程机械,公路客车,发电机械,制冷空调机械,汽车,拖拉机,叉车
近似产品:BRTF12-31-502 BRTF40-00-502 BRTF 40 - 30 BRTF1 /1-00-501 BRTF 1/2 - 00 BRTF3/4-00-502 BRTF16-00-501 BRTF3/4-00-501 BRTF16-00-502 BRTF1/2-00-501
BRTF12-60 BRTF16-61* BRTF20-90 BRTF20-30 BRTF10-91* BRTF22-90* BRTF10-01 BRTF16-01 BRTF10-61* BRTF30-90* BRTF16-30 BRTF18-30
BEM05-90-502 BRTF3/4-00-502 DSA-40-ES DSAL06E DSSA22T/K RAXNPZ 410 BEF 22 - 60 BEF 12 - 20 DSA / DSAL 15 ES (-2RS) DSI / DSIL 12 E LX50 CP 4 55 78 06 - Linear axis with toothed belt drive and ball rail system or roller guide AXC80-Z AXNP 80-Z linear axis with toothed belt drive and rail guide, standard carriage with cover band 07 - Linear axis with toothed belt drive and ball rail system or roller guide AXC80-A
